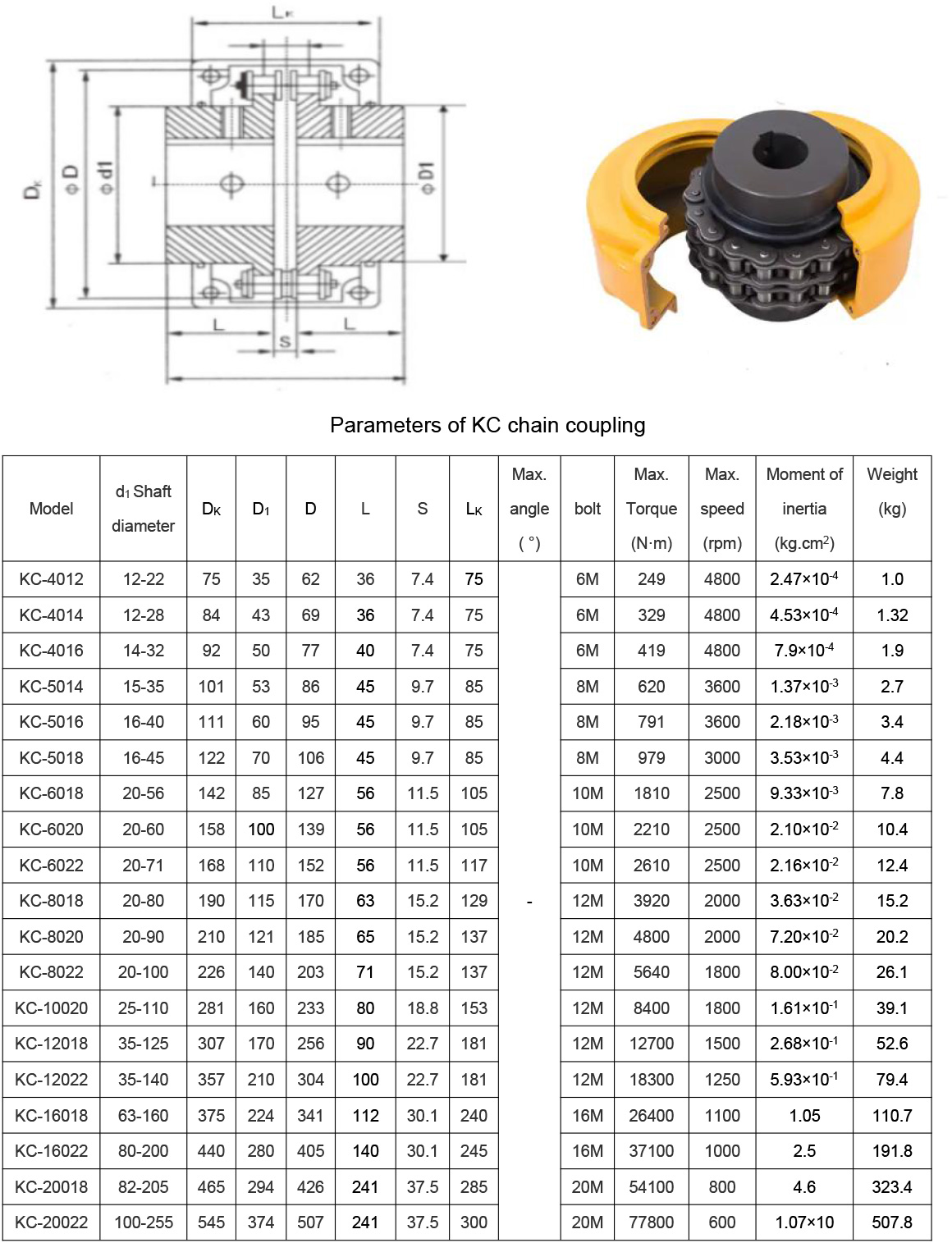

KC chain coupling
The KC chain coupling is a compact and versatile mechanical coupling that transmits torque through a chain and sprocket arrangement. It is designed to accommodate slight misalignments between connected shafts and is widely used in various i...
The KC chain coupling is a compact and versatile mechanical coupling that transmits torque through a chain and sprocket arrangement. It is designed to accommodate slight misalignments between connected shafts and is widely used in various industrial power transmission systems due to its simplicity and cost-effectiveness.
The coupling consists of two identical sprockets and a duplex roller chain that meshes with the sprockets. When assembled, the chain wraps around the sprockets and transmits motion from one shaft to another. The design allows for easy assembly and disassembly, making maintenance straightforward.
KC chain couplings can tolerate angular and parallel misalignment as well as some end float, offering reliable performance under conditions where perfect alignment is not possible. They are typically used in machinery such as conveyors, pumps, mixers, and compressors.
The coupling's components are generally made from high-quality steel for durability and long service life. Some versions may include protective covers for added safety and to prevent contamination. Its compact design and low inertia also make it suitable for high-speed applications.
