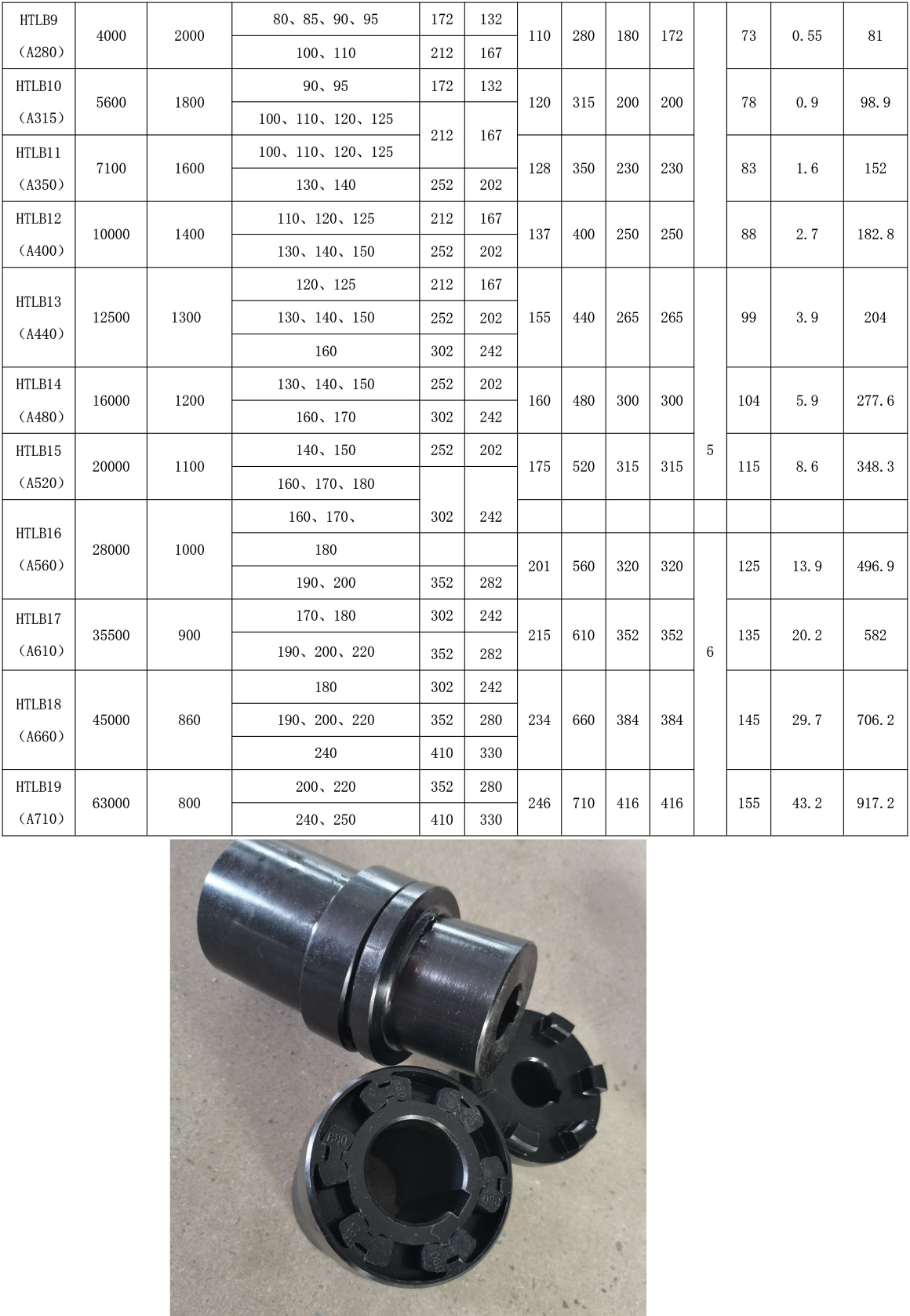

The HTLB Type H Elastic Slider Coupling is a versatile and robust flexible coupling specifically designed for mechanical power transmission systems that require high torque capacity, misalignment compensation, and vibration absorption. It is widely used in heavy-duty machinery and dynamic applications where reliable operation and durability are essential.

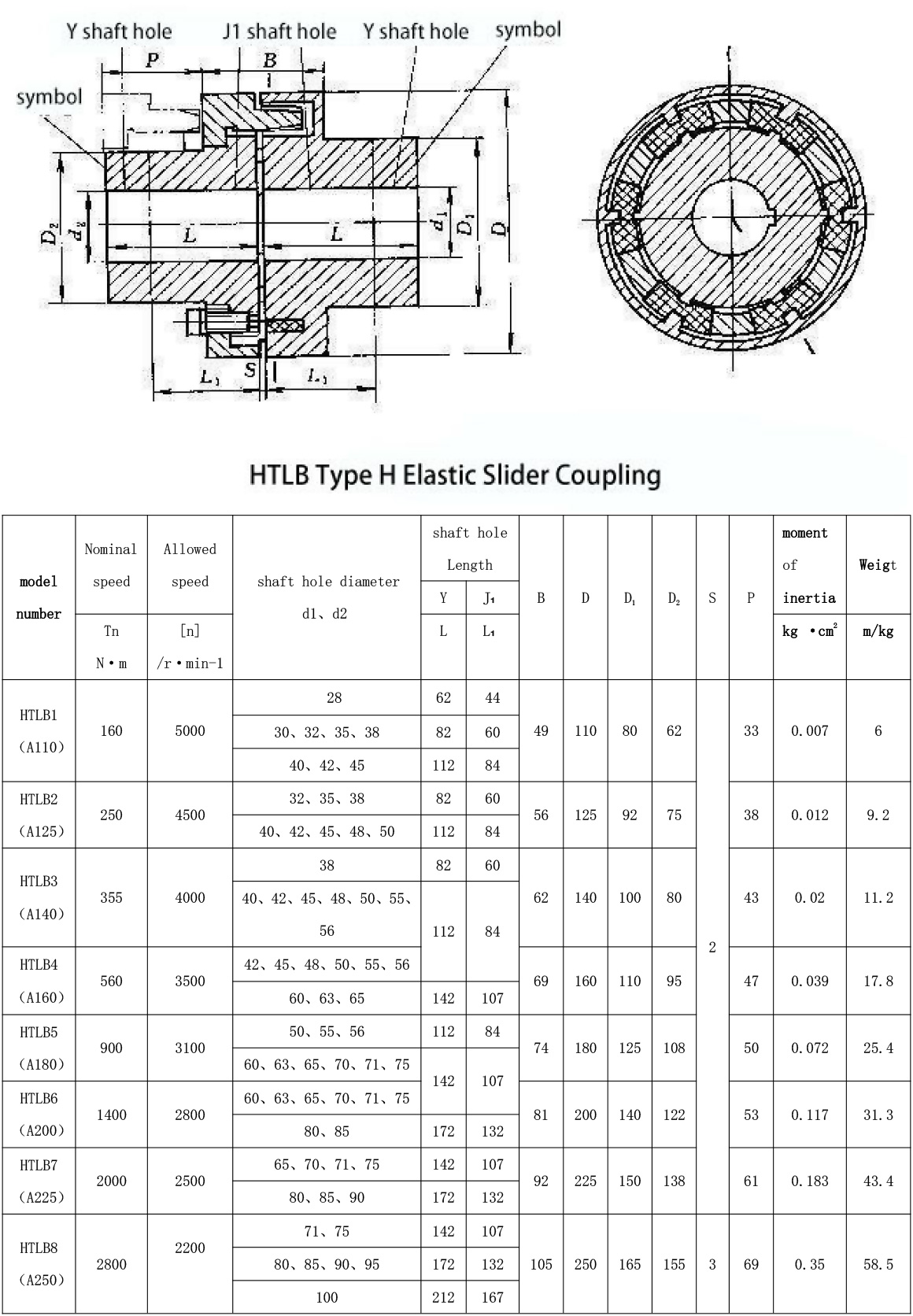

This coupling consists of two metal hubs and a series of elastic sliders or rubber blocks placed between them. These elastic sliders are typically made from high-performance elastomeric materials such as natural rubber or polyurethane, which are known for their resilience, wear resistance, and excellent damping properties. The sliders are inserted into specially machined grooves or cavities within the hubs, allowing them to deform slightly under load, which helps reduce vibration and accommodate shaft misalignment.
The “H” in HTLB Type H generally refers to a more robust or enhanced structure, suitable for high-load and medium- to high-speed conditions. This type of coupling is capable of compensating for small amounts of angular, radial, and axial misalignment while ensuring smooth and silent torque transmission.
Key performance features of the HTLB Type H Elastic Slider Coupling include:
Shock absorption: The elastic sliders buffer dynamic loads and torsional shocks, protecting the connected machinery.
No lubrication required: It operates without the need for regular lubrication, making it ideal for environments where maintenance access is limited.
Low noise: The elastic material significantly reduces noise levels, which is beneficial in noise-sensitive applications.
Easy maintenance: The modular design of the slider elements allows for quick and simple replacement without dismantling the entire coupling.
Typical applications include pumps, conveyors, compressors, agitators, fans, and various industrial drive systems. It is especially suitable for applications that involve frequent start-stop cycles, load fluctuations, or harsh working conditions.
In summary, the HTLB Type H Elastic Slider Coupling offers a balanced combination of flexibility, strength, and vibration control. It enhances system performance, reduces mechanical stress on connected components, and provides a reliable, maintenance-friendly solution for demanding industrial environments.
