TL elastic sleeve column pin coupling

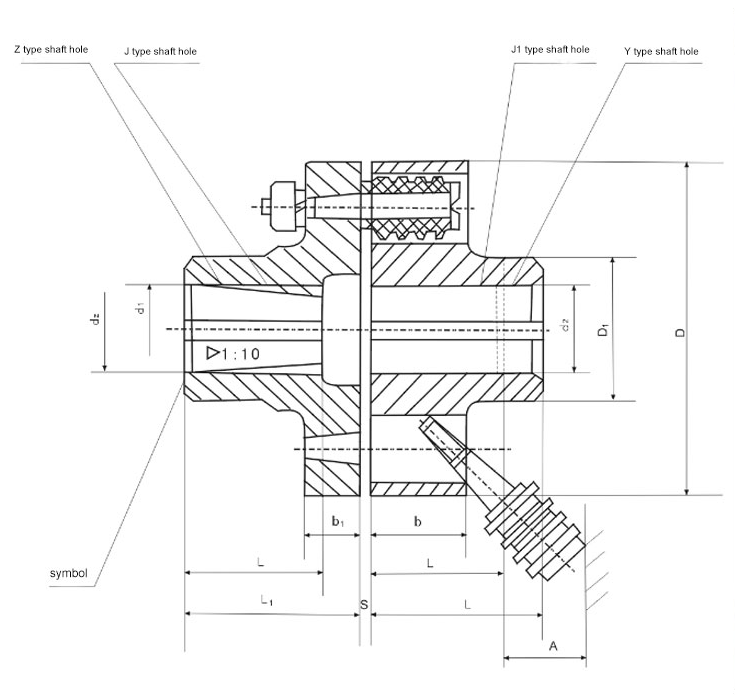

The TL elastic sleeve column pin coupling is a flexible coupling designed to transmit torque between two shafts while providing excellent shock absorption and misalignment compensation. This coupling features a structure where elastic sleeves are fitted over cylindrical pins, which are then connected through flanges on both ends. The elastic sleeves, typically made of rubber or polyurethane, act as the main flexible elements that absorb vibrations, reduce noise, and protect connected equipment from overloads.

One of the key advantages of the TL coupling is its simple yet effective design, which allows for easy assembly, disassembly, and maintenance. The use of elastic sleeves provides a cushioning effect, effectively dampening torsional vibrations and compensating for angular and radial misalignment. The metal pins and flanges ensure reliable torque transmission, while the elastic components reduce wear and extend the service life of the machinery.

This type of coupling is commonly used in applications such as pumps, fans, compressors, conveyors, and general machinery, where moderate torque and alignment flexibility are required. The TL coupling operates efficiently under various working conditions and can maintain stable performance even in the presence of slight misalignments or load fluctuations.

With its combination of flexibility, durability, and cost-effectiveness, the TL elastic sleeve column pin coupling is an ideal solution for improving mechanical system reliability and reducing maintenance downtime.
