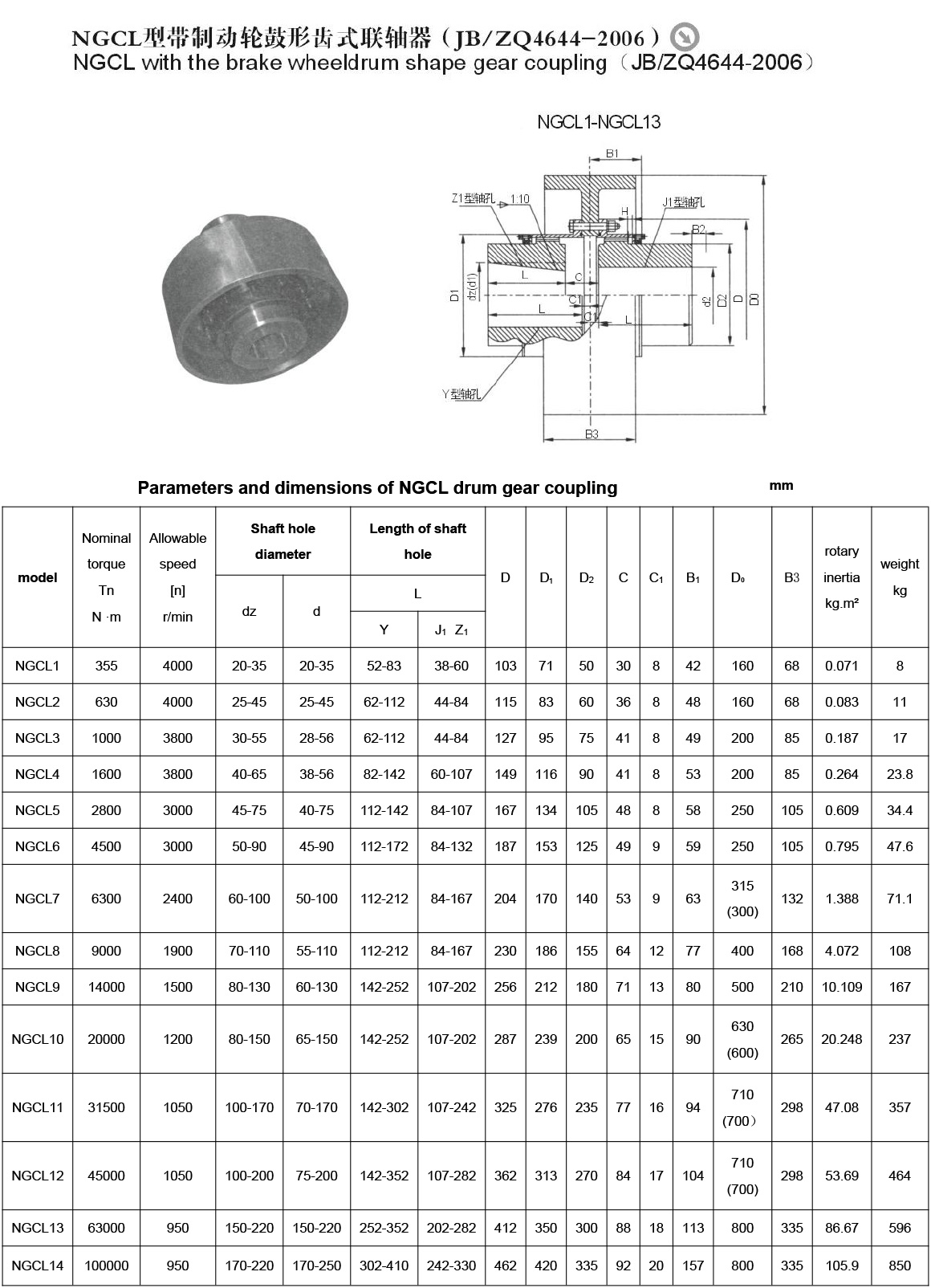

NGCL Type Gear Coupling with Brake Wheel
The NGCL Type Drum Gear Coupling with Brake Wheel is a high-performance flexible coupling designed for heavy-duty power transmission applications where torque transmission and braking functionality are required simultaneously. It integrates...
The NGCL Type Drum Gear Coupling with Brake Wheel is a high-performance flexible coupling designed for heavy-duty power transmission applications where torque transmission and braking functionality are required simultaneously. It integrates a gear coupling and a brake wheel into one compact unit, making it ideal for equipment that requires both rotary connection and mechanical braking.
This coupling features two hubs with crowned external gear teeth and matching sleeves with straight internal teeth, ensuring efficient torque transmission while accommodating angular and axial misalignment. The addition of a brake wheel allows the coupling to work in tandem with mechanical braking systems, commonly used in hoisting and lifting machinery.
Key Features:
Integrated brake wheel design allows direct connection to drum brakes, improving braking reliability and saving space.
Drum-shaped gear teeth improve contact ratio, reduce edge stress, and allow for greater angular misalignment (up to ±1.5°).
High torque capacity, suitable for heavy-duty applications and frequent starting, stopping, and reversing.
Flexible yet strong construction accommodates shaft misalignment and absorbs shock loads.
Easy disassembly and maintenance with a simple bolt-connected flange structure.
Long service life with precision-machined components and heat-treated gear surfaces for superior wear resistance.
Application Fields:
The NGCL Type Gear Coupling with Brake Wheel is widely used in:
Lifting and hoisting machinery
Crane systems
Metallurgy and rolling mills
Mining and conveying equipment
Material handling systems
Other mechanical systems requiring braking and torque transmission in a compact form
Technical Characteristics:
Torque transmission and braking combined in a single component
Suitable for forward and reverse rotation
Designed for medium and low-speed rotating machinery
Lubricated with grease or oil to ensure smooth gear meshing and reduce wear
Operating temperature: –20°C to +80°C (can be customized for other conditions)
The NGCL coupling is an ideal solution for dynamic mechanical systems where safety, braking, and power transmission must be integrated seamlessly. Its robust structure, reliable performance, and easy maintenance make it a preferred choice for modern industrial drive systems.
