WGP Drum Gear Coupling With Brake Disc

Introduction Of WGP Drum Gear Coupling With Brake Disc

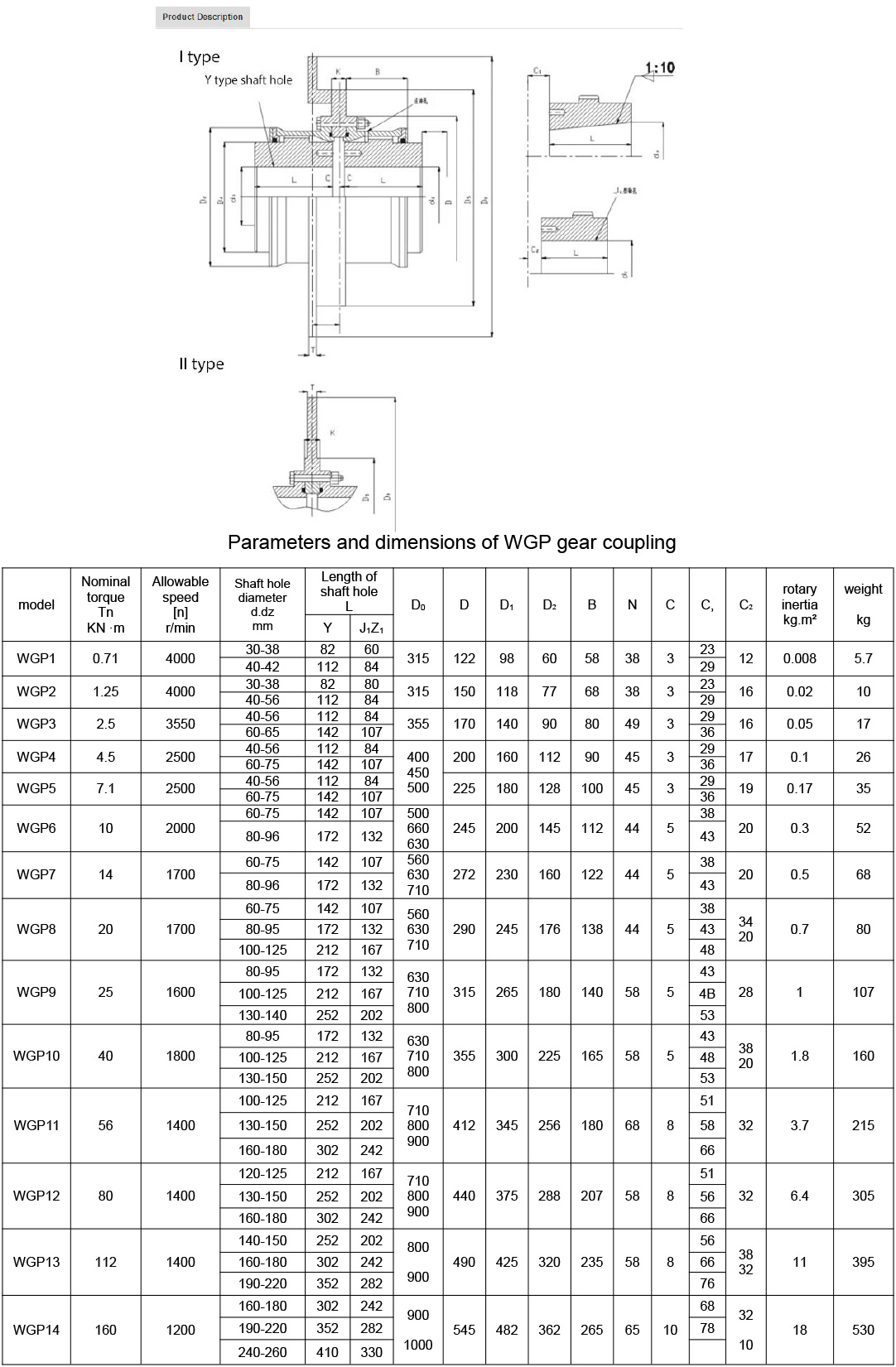

WGP Drum Gear Coupling With Brake Disc has a brake disc, brake disc can rotate speed by controlling the speed toadjust the machine. As shown in figure WGP with brake drum set type gear coupling is divided into l type and l type two formsthe only difference is that the brake disc is different.

WGP Drum Gear Coupling With Brake Disc is an improved type of gear coupling, consisting of inner gear and the same

number of teeth of the flange half band coupling parts etc..WGP Drum Gear Coupling With Brake Disc at work, two have the relative angular displacement, relative axial slidingperiodic internal and external gear tooth surface, willinevitably lead to tooth wear and power consumption, therefore, the gearcoupling needs to work in good condition and seal. The toothed coupling has small radial size and large load capacity. it isusually used for shafting transmission under low speed and heavy load conditions. The high accuracy and dynamic balancingdearcoUlnd can oeSACtoOrA0Atransmisslon
