Z2 Tapered Bush Coupling

Z2 Tapered Bush Coupling – High-Precision Shaft-Hub Connection System

Product Overview

The Z2 Tapered Bush Coupling is an advanced compression-style shaft mounting solution that delivers superior torque transmission without keyways or setscrews. Utilizing precision-ground tapered surfaces and high-strength clamping bolts, this system creates a maintenance-free, backlash-free connection ideal for servomotors, spindles, and precision power transmission applications.

Key Features & Benefits

1. Patented Taper-Lock Technology

Dual-taper interference fit creates 360° uniform clamping force

300% greater holding power compared to standard keyed connections

Self-centering action automatically corrects minor misalignment

2. Precision Engineering

Ground taper surfaces (Ra 0.4μm) for perfect contact

Hardened alloy steel (42CrMo) with 45-50HRC surface hardness

Torque-to-yield bolts ensure consistent preload force

3. Zero-Maintenance Operation

No fretting corrosion – eliminates micro-movement damage

No lubrication required

Recoverable connection – can be disassembled and reused

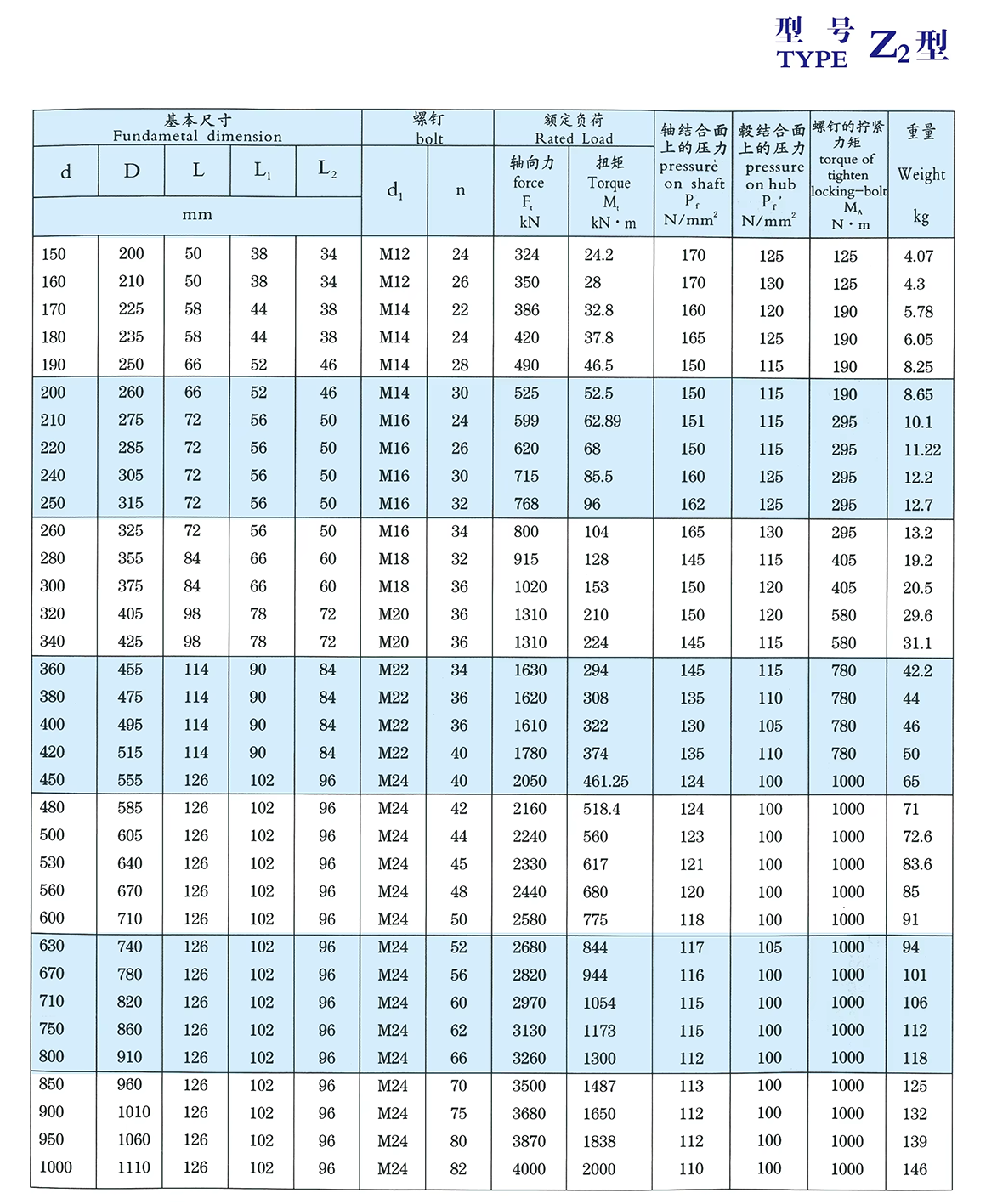

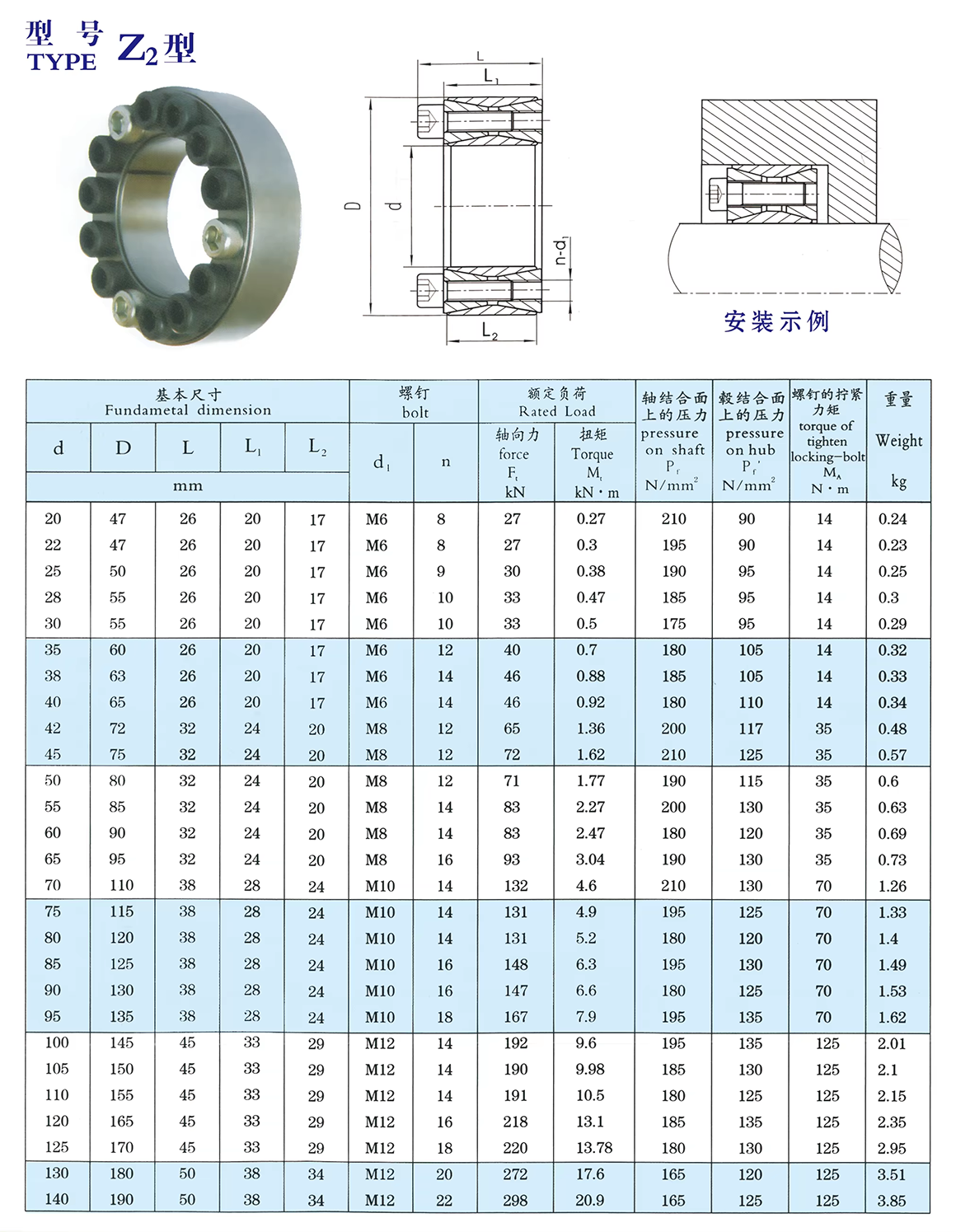

Technical Specifications

Performance Data

Torque capacity: 50Nm–50kNm

Max speed: 15,000 RPM (balanced)

Bore range: 5mm–600mm

Material Science

Core material: 42CrMo/20MnCr5 (ISO 683-1)

Surface treatments:

Black oxide (standard)

Zinc-nickel plating (saltwater)

DLC coating (ultra-high wear)

Application-Specific Solutions

For CNC Machinery

Ultra-precision grade (AA class) with <5μm runout

Coolant-proof versions

In Renewable Energy

Wind turbine certified (GL2010)

Anti-vibration designs

Food & Pharmaceutical

FDA-compliant stainless steel (316L)

EHEDG-certified clean design

Installation Advantages

Single-wrench tightening – no special tools required

Laser-etched torque marks for proper installation

Thermal fitting aids available for large sizes

The Z2 Tapered Bush Coupling redefines shaft-hub connections with unmatched holding power, precision, and reliability – the intelligent choice for modern mechanical power transmission.
