Split Clamp Coupling

Split Clamp Coupling – Heavy-Duty Power Transmission Solution for Industrial Applications

Product Overview

The Split Clamp Coupling (also known as a Clamshell Coupling) is a robust, easy-to-install coupling designed for high-torque applications where quick assembly and disassembly are required. Its unique two-piece split design allows for fast installation without shaft disassembly, making it ideal for maintenance-heavy environments such as mining, marine, and heavy machinery.

Key Features & Benefits

1. Innovative Split-Clamp Design

Two symmetrical halves bolt together around shafts for tool-free installation

No need to move connected equipment – install/remove without shaft disassembly

Uniform clamping force prevents shaft damage and slippage

2. Heavy-Duty Construction

High-strength cast iron or forged steel (GGG50 / ASTM A536)

Precision-machined grooves for perfect concentricity

Corrosion-resistant coatings (zinc-nickel, epoxy, or stainless steel options)

3. Superior Torque Transmission

Keyless shaft connection (optional keyways available)

Interlocking teeth or friction surfaces for positive torque transfer

High torsional stiffness with minimal angular deflection

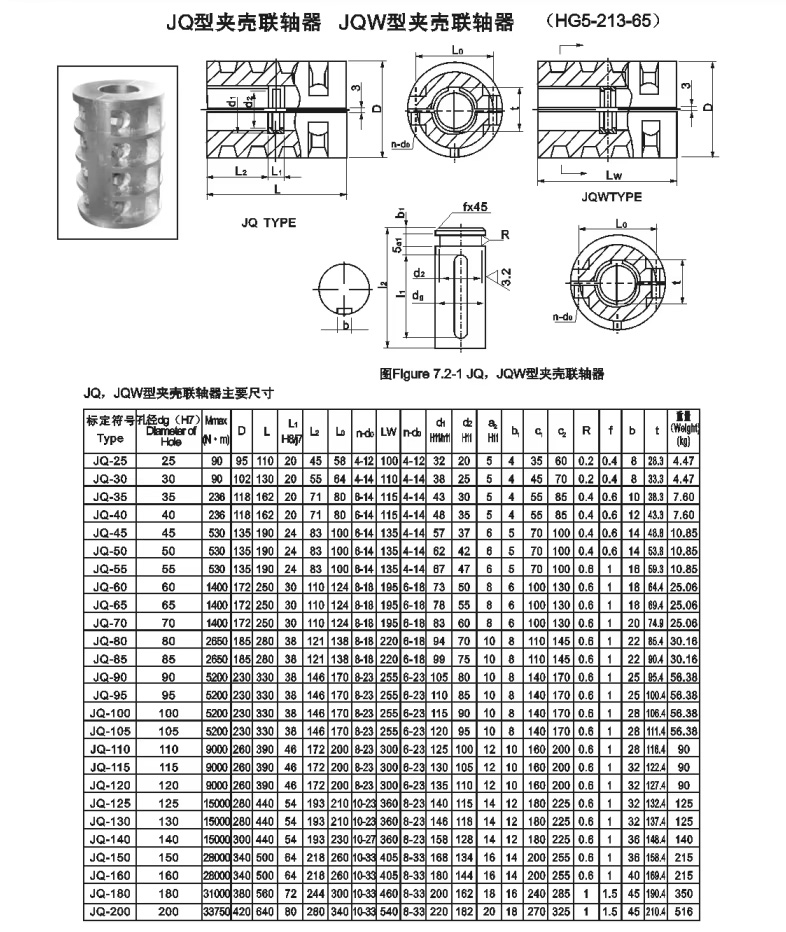

Technical Specifications

Performance Data

Torque Capacity: 500Nm – 500,000Nm

Max Speed: 5,000 RPM (balanced versions available)

Shaft Diameter Range: 20mm – 600mm

Environmental Resistance

Temperature Range: -40°C to +200°C

IP66 Standard Protection (IP68 optional)

Chemical-Resistant to oils, acids, and seawater

Industry-Specific Advantages

✔ Mining & Minerals: Withstands shock loads from crushers and mills
✔ Marine & Offshore: Saltwater-proof versions with DNV/GL certification
✔ Power Generation: Handles turbine thermal expansion
✔ Steel Production: Heat-resistant models for rolling mills

Installation & Maintenance

5-minute installation – fastest in its class

No lubrication required

Wear indicators show when re-torquing is needed

Reusable design – disassemble and reinstall repeatedly

The Split Clamp Coupling delivers unmatched installation convenience without compromising power transmission performance – the perfect solution where downtime costs are critical.
